SIAX M-EVO

Numerical Control

  • 7" WIDE TFT 262.000 color touch screen
  • Multi-axis management via Ethercat fieldbus
  • Ethercat for axes and for I/O
  • Can-Open for axes and for I/O
  • Incremental encoders / SSI serial absolute encoders
  • Analog inputs
  • Analog outputs
  • Interrupt inputs
  • Step / direction outputs max 500 KHz
  • Ethernet port for remote assistance (IP address)
  • USB

Files

More details:

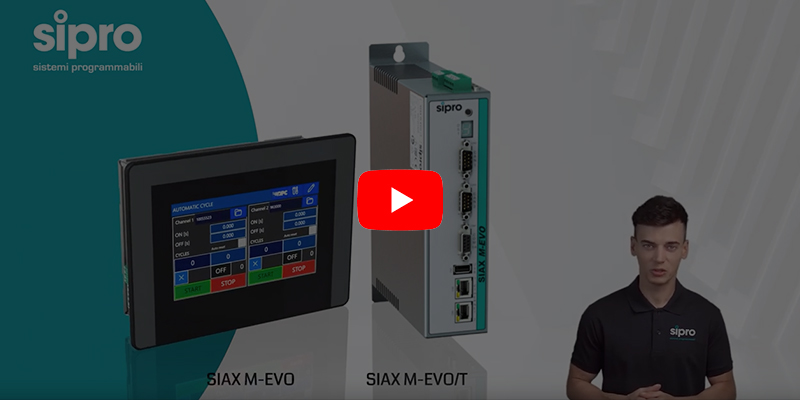

SIAX M-EVO is the SIPRO numerical control designed for multi-axis machines.

The SIAX M-EVO is available in three versions: for internal panel, with integrated touch screen and in palmar version.

The internal panel version can be connected to the SIPRO HMIS series HMI (from 7 to 15" WIDE) and to the SIPRO PCs with capacitive touch and large screens (from 15 to 21" WIDE).

The use of this separate solution allows for more advanced human interfaces, with higher-performance graphic capabilities and also improves the possibilities of connection with the outside world.

Compact in size, the SIAX M-EVO mounts a powerful 32-bit processor - 400 Mhz.

The memory is 8 Gbyte EMMC and 64 MByte RAM.

The retentive RAM used allows to eliminate the use of the buffer battery.

The managed peripherals are the following:

2 Ethernet ports (1 with Ethercat protocol), 2 Can Open lines, 3 serial lines of which one is configurable RS232/422/485, 1 USB port and 4 interrupt inputs.

The managed communication standards are: Ethercat, Can Open, Modbus TCP, Modbus RTU, FTP, TCP/IP and OPC UA.

Back

SIAX M-EVO

Portability

All the pages developed for our numerical controls with Smartpage.net can be installed on an Android device through the appropriate app. The pages are automatically scaled to fit the screen of the device.

Local or remote

The interface made with Smartpage.net can be replicated on a device connected locally to the machine through wi-fi or remotely through the internet.

Customized

You can create specific pages to be installed on Android devices to have - for example - the machine's productivity statistics or to check multiple machines simultaneously.

Management

Pages created with Smartpage.net can also be installed on Sipro Android industrial human interfaces with the advantage of being connected through Ethernet to the control, allowing to manage manual handling.

Remote assistance

On all Android devices (commercial or industrial), you can also install other third-party app, such as TeamViewer® for Android for example. The ability to do this generates many benefits in managing, for example, the remote assistance.

Email

From Android supervision it is also possible to manage the forwarding of reports on the system status through email (for example machine alarms and more).

Android compatibility
